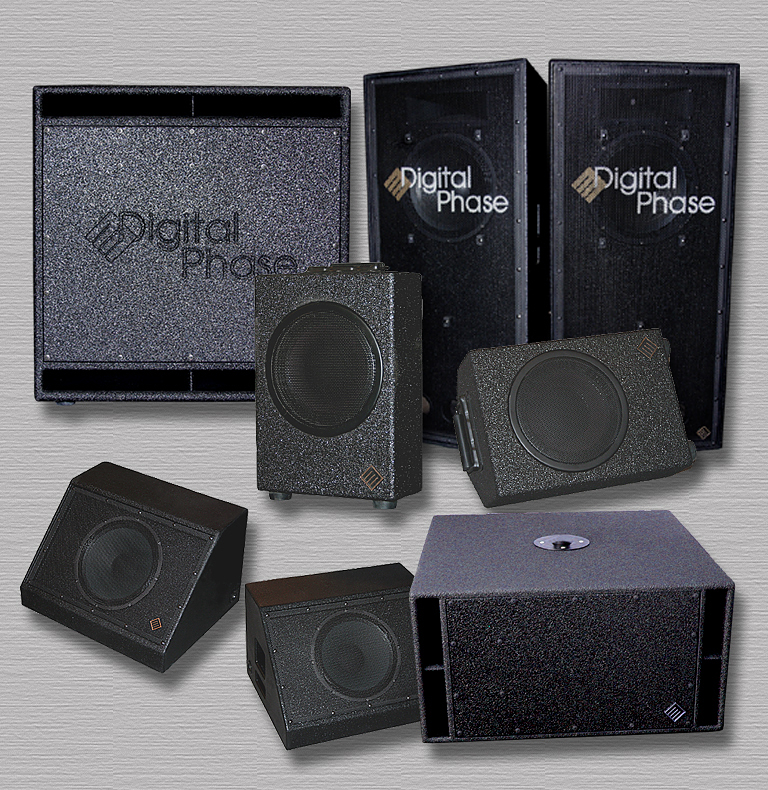

About the PA Pro-Series Speakers:
The PA-Series speakers stand alone in the highly competitive world of live sound reproduction.  Many direct comparisons have been made between our products and the top manufactures in the World.  At even comparison the Digital Phase PA speakers out performed the competition! Not just our opinion but the competitions as well.  With the PA-Series speakers, system setup is highly simplified.  The resultant sound from a simple plug and play operation, rivals much larger systems that use all active cross-overs, full band EQs, separate amplifiers for each band of audio(Lows, Mids & Hi), while our units were driven with only one amp, no EQ or Active Crossovers. If you are looking for a lighter system, with a minimum amount of equipment to transport and the simplest hookup you will ever see, with top performance at the forefront  the Digital Phase PA-Series is the Pro-Audio solution you have been looking for!

l Wide bandwidth response for full range sound reproduction.

l Ultra transparent sound reproduction with effortless, accurate reproduction.

l Uniform axial and power response for easier room placement and more uniform sound with optimal coverage.

l High power handling with minimal compression.

l Phase coherent for extreme depth of field and incredible imaging from a pro line speaker!

l Extra study cabinets of Baltic Birch plywood, coated with a durable polymer resin.

Common Specs and Features:

Crossover: High quality Oxygen-Free Copper Air-core inductors with Solan hi grade polypropylene Capacitors.

Cabinet: Patented Acousta-Reed enclosure manufactured of grade Baltic Birch wood.

Connectors: 1/4" and Speakon multi-way connectors on all models, (except floor monitors).

Specifications PA-SM8C PA-FM12C PA-PS10 PA-12SB PA-4FH
SPL 1 Watt @ 1 Meter 96db 97db 93db 96db 96db
Frequency Response +/- 3db 85Hz-20Khz 60Hz-20Khz 23Hz-110Hz 23Hz-110Hz 35Hz-20Khz
Power Handling RMS 150 watts 250 watts 400 watts 450 watts 600 watts
Power Handling Music 200 watts 350 watts 550 watts 600 watts 1200 watts
Power Handling Peak 250 watts 450 watts 700 watts 1000 watts 2400 watts
Number of Tweeter(s) / Horn(s) 1 x 1" 1 x 1" 0 0 1-4" x 10"
Number of Woofers(s) 1 x 8" 1 x 12" 1 x 10" 1 x 12" 1 x 12"
Crossover Passive LR 12db-Oct LR 12db-Oct None None LR 18db-Oct
Capacitors Metallized Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene
Inductors Oxygen Free Air-Core Air-Core Air-Core Air-Core Air-Core
Cardas Audio Golden Chassis Wiring  14 ga/256s 14 ga/256s 14 ga/256s 14 ga/256s 14 ga/256s
Base Cabinet Material - Baltic Birch 1/2" 1/2" 1/2" 3/4" 1/2"
Connector(s)  1/4" 2 x 1/4" Spk & 1/4" Spk & 1/4" Spk & 1/4"
Dimensions H" x W" x D" 7 x 21 x 13 16 x 11 x 12 38 x 11 x 11 42 x 13 x 14 50 x 16 x 18
Shipping Weight (In Pounds) 31 each 45  55 each 85 each 79 each
Impedance Nominal 8 Ohms 8 Ohms 4 Ohms 6 Ohms 8 Ohms
