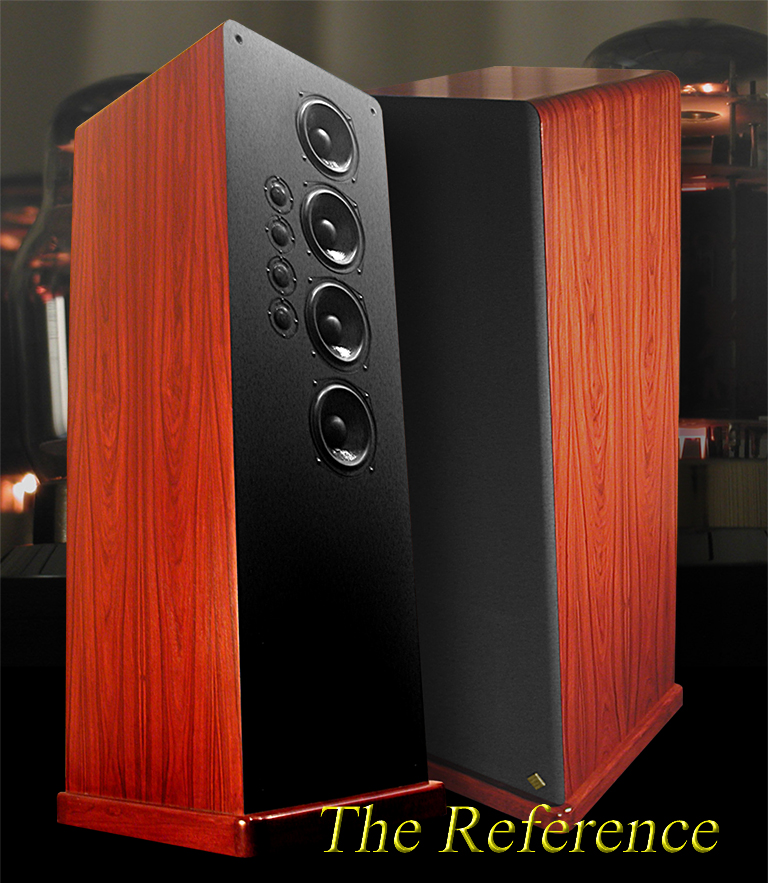

|About the EP Reference Series Speakers:|
|The EP Series speakers stand alone in the highly competitive world of
sound reproduction. Anyone that has heard these speakers will tell
you, they are like nothing else they have heard. The EP-4 is
one of the only speakers to date, that can truly reproduce the full bandwidth
and volume of a live performance with the most delicate nuances apparent
from the very heart of the music! All this with the dynamic impact
of a live band with the full fundamental foundation not only present,
but you can hear and feel every note with unbelievable clarity!
By doing this in a single speaker, fully time aligned and phase coherent, it revels a sound stage with outstanding imaging, clarity, coherence, and individual voicing of each instrument to a level that can never be realized with a multi unit system. One way to put it, is, you have to hear them to believe it!
Each EP Series speaker is built with the finest materials that the industry has to offer! Each has oxygen free Toroidal inductors, Cardas Audio Golden Reference wiring, Cardas Golden Ratio Capacitors, cast frame drivers, solid MDF enclosures, each hand built as if were our own!
l Wide bandwidth response for full range sound reproduction, no subs allowedrequired or recommended!
l Ultra transparent sound reproduction with effortless, accurate reproduction.
lUniform axial and power response for easier room placement and more uniform sound.
lHigh power handling with minimal compression.
lPhase coherent and fully time aligned for extreme depth of field and imaging with absolute voicing placement.
lExtra study cabinet with real oak veneer and solid oak base standard. Many other woods available at time of purchase (ask about pricing).
lSmall footprint, all but the largest model only take up about one square foot of floor space.
|Common Specs and Features:|
Drive Unit Woofer: 6.5" Pulp paper with doping and stiffing resins, none pressed cone with 35mm flat edge-wound voice coil former with copper wire. Barium Ferrite and Neo magnets (inner and outer voice-coil). Rubber surround. Progressive spiders.
Drive Unit Tweeter: 1" Titanium Metal Dome, with doped silk surround with liquid cooling.
Crossover: Highest quality Oxygen-Free Copper Toroidal Air-core inductors with Cardas Golden Ratio Capacitors.
Cabinet: Patented Acousta-Reed enclosure manufactured of grade A MDF material.
Connectors: Gold Plated Brass 5-way binding post on standard 1/2" centers.
|SPL 1 Watt @ 1 Meter||87db||87db||88db||95db||95db|
|Frequency Response +/- 1.5db||35Hz-20Khz||35Hz-20Khz||35Hz-20Khz||35Hz-20Khz||35Hz-20Khz|
|Power Handling RMS||75 watts||75 watts||100 watts||150 watts||200 watts|
|Power Handling Music||100 watts||100 watts||150 watts||200 watts||250 watts|
|Power Handling Peak||150 watts||150 watts||200 watts||250 watts||350 watts|
|Number of Tweeter(s)||1||1||1||1||1|
|Number of Woofers(s)||2||2||1||2||4|
|Crossover Passive||LR 12db-Oct||LR 12db-Oct||LR 12db-Oct||LR 12db-Oct||LR 12db-Oct|
|Cardas Capacitors Metallized||Polypropylene||Polypropylene||Polypropylene||Polypropylene||Polypropylene|
|Inductors Oxygen Free||Toroidal||Toroidal||Toroidal||Toroidal||Toroidal|
|Cardas Audio Golden Chassis Wiring||15.5 ga||15.5 ga||15.5 ga||15.5 ga||15.5 ga|
|Base Cabinet Material||MDF 1/2"||MDF 5/8"||MDF 3/4"||MDF 1"||MDF 1"|
|Connector(s) Gold Plated||5-way BP||5-way BP||5-way BP||5-way BP||5-way BP|
|Dimensions H" x W" x D"||7 x 21 x 13||16 x 11 x 12||38 x 11 x 11||42 x 13 x 14||50 x 16 x 18|
|Shipping Weight (In Pounds)||31 each||54 (Pair)||55 each||85 each||150 each|
|Impedance Nominal||8 Ohms||8 Ohms||8 Ohms||4 Ohms||8 Ohms|
|Custom Wood Finish||
Call for Details
|Call for Details||Call for Details||Call for Details||Call for Details|
|1,599.00 pr||2,900.00 pr||5,600.00 pr||12,000 pr|
|Factory Direct||799.00 ea||1,249.00 pr||2,300.00 pr||4,500.00 pr||9,000.00 pr|
