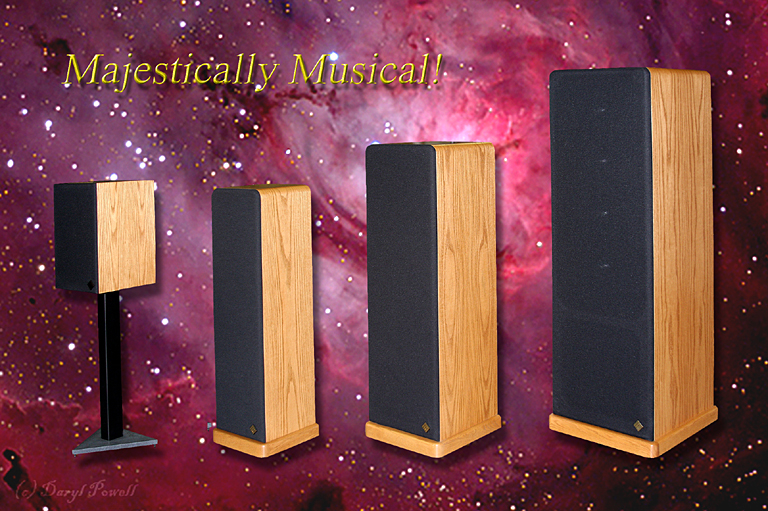

Key Features of AP Series Speakers:
l Wide bandwidth response for full range sound reproduction, no subs required or recommended!

l Ultra transparent sound reproduction with effortless, accurate reproduction.

l Uniform axial and power response for easier room placement and more uniform sound.

l High power handling with minimal compression.

l Phase coherent and fully time aligned for extreme depth of field imaging and voicing placement.

l Extra study cabinet with real oak veneer and solid oak base.

l Small footprint, all but the largest model only take up about one square foot of space.

Common Specs and Features:

Drive Unit Woofer: 6.5" Aluminum Woofer cone with 35mm aluminum voice coil former with copper wire.
30 oz Barium Ferrite magnet. Rubber surround. Progressive spiders.

Drive Unit Tweeter: 1" Titanium Metal Dome, with doped silk surround with liquid cooling.

Crossover: High quality Oxygen-Free Copper air core inductors with premium Solan polypropylene capacitors from
France.

Cabinet: Patented Acousta-Reed enclosure manufactured of grade A MDF material.

Connectors: Gold Plated Brass 5-way binding post on standard 1/2" centers.
Specifications AP-.7cc AP-.7 AP-1 AP-2 AP-4
SPL 1 Watt @ 1 Meter 87db 87db 87db 91db 92db
Frequency Response +/- 1.5db 35Hz-20Khz 35Hz-20Khz 35Hz-20Khz 35Hz-20Khz 35Hz-20Khz
Power Handling RMS 75 watts 75 watts 100 watts 150 watts 150-500 watts*
Power Handling Music 100 watts 100 watts 150 watts 200 watts 200-600 watts*
Power Handling Peak 150 watts 150 watts 200 watts 250 watts 300-1000 watts*
Number of Tweeter(s) 1 1 1 1 4
Number of Woofers(s) 2 2 1 2 4
Crossover Passive LR 12db-Oct LR 12db-Oct LR 12db-Oct LR 12db-Oct LR 12db-Oct
Capacitors Metallized Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene
Inductors Oxygen Free Air-Core Air-Core Air-Core Air-Core Air-Core
Wiring Oxygen Free 14 ga/256s 14 ga/256s 14 ga/256s 14 ga/256s 14 ga/256s
Base Cabinet Material MDF 1/2" MDF 5/8" MDF 3/4" MDF 1" MDF 1"
Connector(s) Gold Plated 5-way BP 5-way BP 5-way BP 5-way BP 5-way BP
Dimensions H" x W" x D" 7 x 21 x 13 16 x 11 x 12 38 x 11 x 11 42 x 13 x 14 50 x 16 x 18
Shipping Weight (In Pounds) 27 each 50 (Pair) 50 each 79 each 120 each
Impedance Nominal 8 Ohms 8 Ohms 8 Ohms 4 Ohms 8 Ohms
Colors Standard Oak or Black Oak or Black Oak or Black Oak or Black Oak or Black
Wood Finish Oak* Oak* Oak* Oak* Oak*
Bi-Wire No No No Yes Yes
Us Retail Prices 849.00 ea 1,395.00 pr 1,695.00 pr 2,195.00 pr 3,695.00 pr
Factory Direct 519.00 ea 1,049.00 pr 1,399.00 pr 1,799.00 pr 2,999.00 pr
 * Switchable power mode determines power handling
 * Custom woods are an option at time of order, at additional cost
